Ultra Thin Mini Tactile Switch Momentary For Earphone IP65 Waterproof

Product Categories

ZHEJIANG BOZHONG ELECTRIC CO., LTD

Contact Now

Ultra Thin Mini Tactile Switch Momentary For Earphone IP65 Waterproof

Name: Ultra Thin Mini Tactile Switch Momentary For Earphone IP65 Waterproof
Brand: BZCN
Price: 1 USD

China Ultra Thin Mini Tactile Switch Momentary For Earphone IP65 Waterproof wholesale

Brand Name : BZCN

Model Number : TS-A003

Certification : SGS

Place of Origin : CHINA

MOQ : 1000 pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 1000000 pcs per week

Delivery Time : 3 workdays

Packaging Details : 1000 pcs per bag

Terminal No. : 2 pin

Center push : Black point

Current rate : 0.5mA

Voltage : 12v

Cover : thin firm

Terminal : Copper

Contact Now

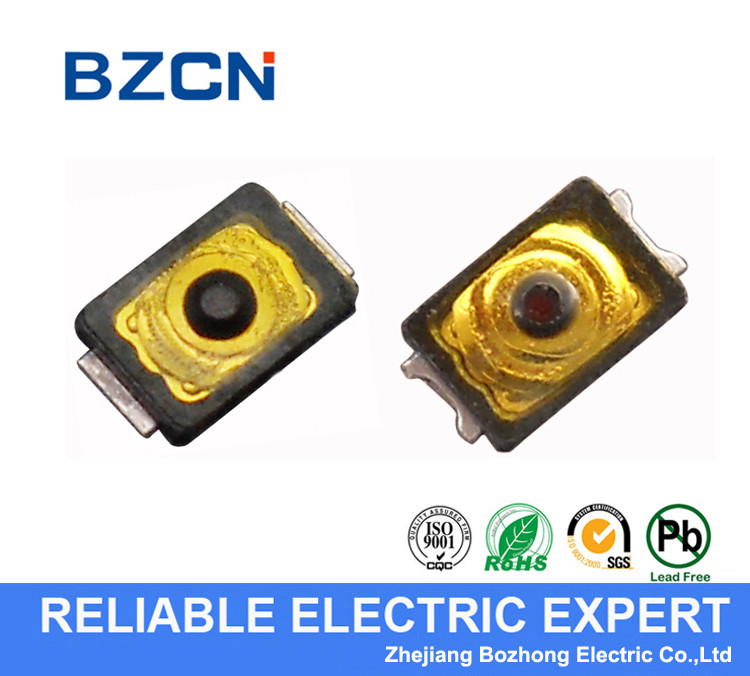

Ultra thin mini tactile switch momentary for earphone IP 65 waterproof

tact switch is surface mount and ultraminiature in size. It is a mere 2.0mm x 3.0mm in size with a very low profile of 0.60mm. There are four operating force options: 100 grams, 160 grams, 240 grams and 330 grams. It has a life cycle of 300,000 to 500,000 actuations depending on the operating force

With the small footprint and low profile, and the SMT design, it can be used for many small applications, including wearable technology, medical devices, audio/visual and other products where space is at a premium.

Spec.

Model No.		TS-A003
Terminal Type		SMD
Switch Rating		50mA DC 12V
Operation Travel		0.2±0.1mm
Operation Tpye		Momentary
Operation Force		160/180/250 gf
Operation Life		300,000 Cycles
Contact Resistance		≤100mΩ max
Insulation Resistance		≥100MΩ/m DC 250V
Dielectric Strength		AC 250V/m 50Hz
Operation Temperature		-30℃ to + 85℃
Operation Humidity		25-85% RH
Solder Ability		260±5℃ for 3 seconds

Reference:

Ultra Thin Mini Tactile Switch Momentary For Earphone IP65 Waterproof

Product Tags:

smd push button switch

smd momentary switch
