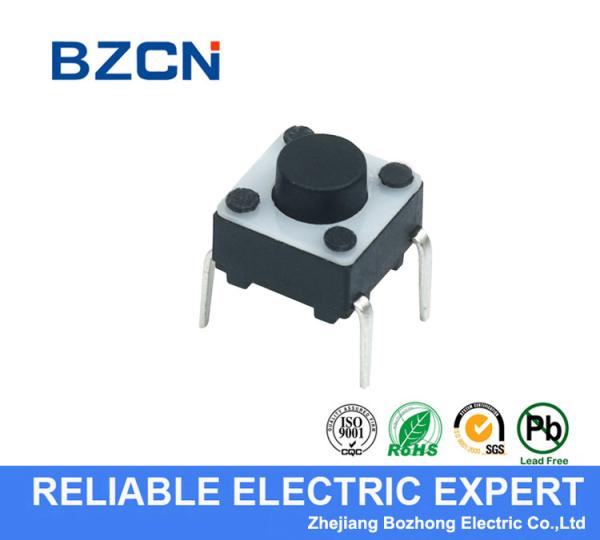

Through Hole Momentary Sealed Tactile Switch With 4 Pin Direct Operation

Name: Through Hole Momentary Sealed Tactile Switch With 4 Pin Direct Operation
Brand: BZCN
Price: 1 USD

China Through Hole Momentary Sealed Tactile Switch With 4 Pin Direct Operation wholesale

Brand Name : BZCN

Model Number : TS-D004

Certification : SGS

Place of Origin : CHINA

MOQ : 1000 pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 10000000 pcs per week

Delivery Time : 3 days

Packaging Details : 1000 pcs per bag

Cover : Plastic

Housing : PA66

Rating : 50mA

Voltage : 12v

Terminal : through hole version

Push : Vertical

Contact Now

through hole Tactile Switch with 4 pin Direct operation Momentary sealed tact Switch

Preheating to 100°C for 45 sec. max. Keep flux flush with top surface of PCB; do not apply to component side of PCB and area where terminals are located. Soldering to 255°C for 5 sec. max. Clean by brushing on solder surface. Do not clean switch with solvents.

Features.

Snap in type terminal, directly mounted in PCB.

Output terminal can be also used as jumper leads.

Through hole terminal with plastic cover available.

Spec.

Model No.		TS-D004
Terminal Type		DIP
Switch Rating		50mA DC 12V
Operation Travel		0.2±0.1mm
Operation Tpye		Momentary
Operation Force		160/180/250 gf
Operation Life		300,000 Cycles
Contact Resistance		≤100mΩ max
Insulation Resistance		≥100MΩ/m DC 250V
Dielectric Strength		AC 250V/m 50Hz
Operation Temperature		-30℃ to + 85℃
Operation Humidity		25-85% RH
Solder Ability		260±5℃ for 3 seconds

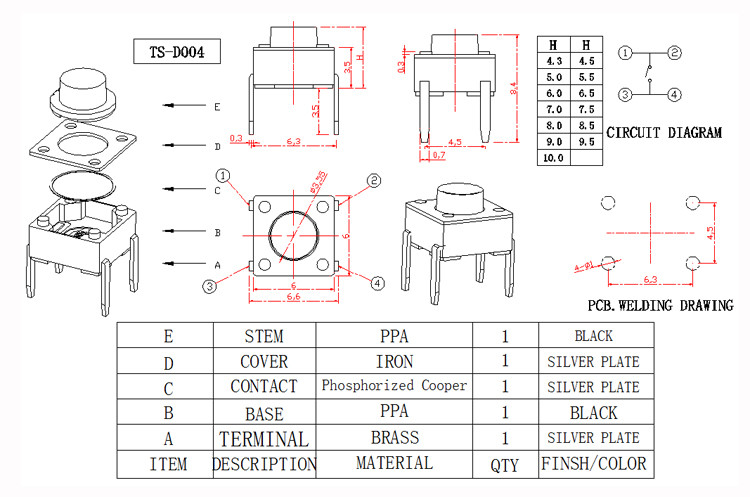

Drawing.

Through Hole Momentary Sealed Tactile Switch With 4 Pin Direct Operation
