Momentary Waterproof Tactile Switch / SMD Tactile Switch For Car Key Remote

Name: Momentary Waterproof Tactile Switch SMD Tactile Switch For Car Key Remote
Brand: BZCN
Price: 1 USD

China Momentary Waterproof Tactile Switch / SMD Tactile Switch For Car Key Remote wholesale

Brand Name : BZCN

Model Number : TS-E005

Certification : SGS

Place of Origin : CHINA

MOQ : 1000 pcs

Price : Negociable

Payment Terms : Western Union, L/C, T/T, MoneyGram

Supply Ability : 1000000

Delivery Time : 5 days

Packaging Details : 1000 pcs per bag

Waterproof : IP67

Material : PA66

Travel : Long travel

Button : Silicon button

Operation : Momentary

Rating : 50mA

Contact Now

Soft feeling Actuator J type momentary SMD tact switch terminal for car key remote

An SMT Sealed Tactile switch, it is process sealed.

Great for use in portable handheld devices, consumer electronics, telecommunications and medical devices, car remote contral switch etc.

Feature.

Reflow solderable

packaging in tape reel

water proof available IP67

dust proof in dusty enviroment

Normally closed possible

Spec.

Model No.		TS-E005
Terminal Type		SMD
Switch Rating		50mA DC 12V
Operation Travel		0.2±0.1mm
Operation Tpye		Momentary
Operation Force		180/250 gf
Operation Life		100,000 Cycles
Contact Resistance		≤100mΩ max
Insulation Resistance		≥100MΩ/m DC 250V
Dielectric Strength		AC 250V/m 50Hz
Operation Temperature		-30℃ to + 85℃
Operation Humidity		25-85% RH
Solder Ability		260±5℃ for 3 seconds

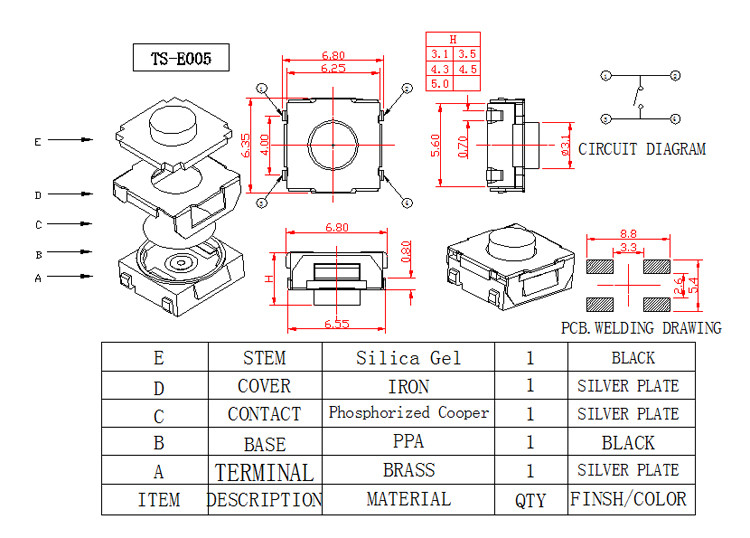

Drawing:

Momentary Waterproof Tactile Switch / SMD Tactile Switch For Car Key Remote
