SMD Terminal Type Low Profile Tactile Switch , Surface Mount Push Button

Name: SMD Terminal Type Low Profile Tactile Switch Surface Mount Push Button
Brand: BZCN
Price: 1 USD

Brand Name : BZCN

Model Number : TS-C015

Certification : SGS

Place of Origin : China

MOQ : 1000 pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 10000000 pcs per week

Delivery Time : 3 days

Packaging Details : 1000 pcs per bag

Push : Horizontal

Size : 4.5 mm

Rating : 50mA

Voltage : 12V

Dust proof : Acceptable

Operation : Momentary

Contact Now

momentary black push button tactile switch SMD surface mount type terminal 4 pin

Depending on the application, this component is suited to the following methods: Cleaning according to typical washing processes, Infrared Reflow Soldering in accordance with IEC 61760-1.

Features.

Suitable for high density mounting.

Reflow solderable.

Horizontal type capable of operating in horizontal to PCB.

Can be packed on Tape Reel.

Ultra thin low profile

Spec.

Model No.		TS-C015
Terminal Type		SMD
Switch Rating		50mA DC 12V
Operation Travel		0.2±0.1mm
Operation Tpye		Momentary
Operation Force		160/180/250 gf
Operation Life		300,000 Cycles
Contact Resistance		≤100mΩ max
Insulation Resistance		≥100MΩ/m DC 250V
Dielectric Strength		AC 250V/m 50Hz
Operation Temperature		-30℃ to + 85℃
Operation Humidity		25-85% RH
Solder Ability		260±5℃ for 3 seconds

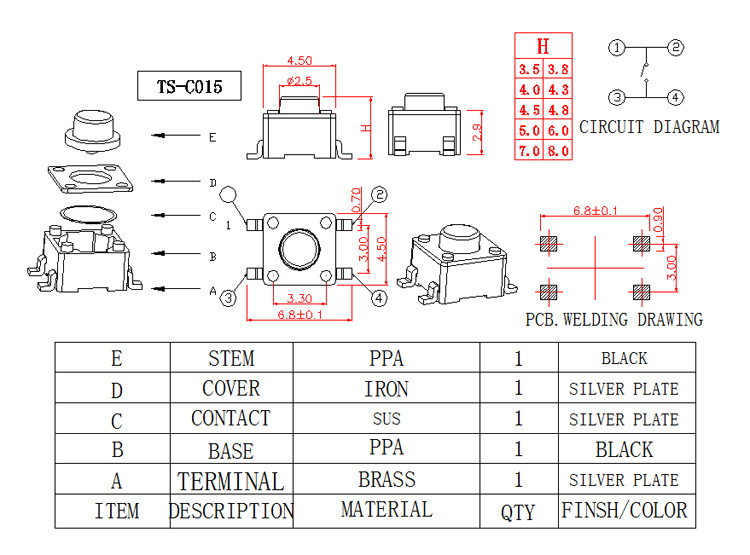

Drawing.

SMD Terminal Type Low Profile Tactile Switch , Surface Mount Push Button
