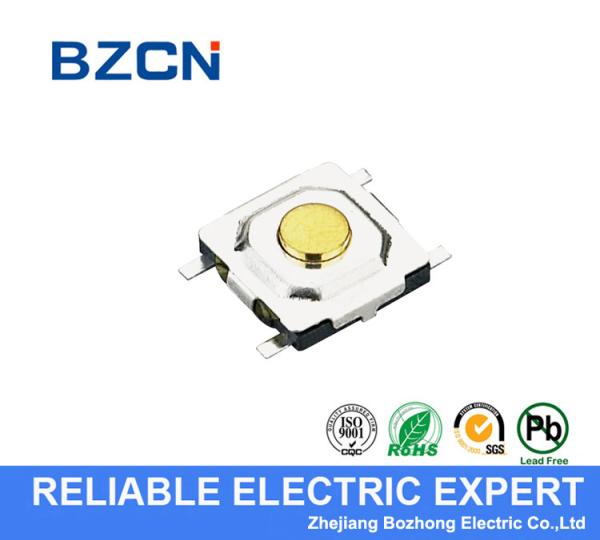

Brass Button Low Profile Momentary Switch , 12v Push Button Switch PA66 Material

Name: Brass Button Low Profile Momentary Switch 12v Push Button Switch PA66 Material
Brand: BZCN
Price: 1 USD

Brand Name : BZCN

Model Number : TS-C010

Certification : SGS

Place of Origin : China

MOQ : 1000 pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 10000000 pcs per week

Delivery Time : 3 days

Packaging Details : 1000 pcs per bag

Push : Horizontal

Material : PA66

Rating : 50mA

Voltage : 12V

Case : Brass

Operation : Momentary

Contact Now

Low-profile Vehicle-compatible tactile switch 4 terminal pin brass button switch

with either a 0.8mm or a 1.5mm actuator height. Often found designed into remote controls, instrumentation and various other consumer products, PTS525 switches can withstand harsh environments to keep working for a high number of cycles.

Features.

Suitable for high density mounting.

Reflow solderable.

Horizontal type capable of operating in horizontal to PCB.

Can be packed on Tape Reel.

Ultra thin low profile

Spec.

Model No.		TS-C010
Terminal Type		SMD
Switch Rating		50mA DC 12V
Operation Travel		0.2±0.1mm
Operation Tpye		Momentary
Operation Force		160/180/250 gf
Operation Life		300,000 Cycles
Contact Resistance		≤100mΩ max
Insulation Resistance		≥100MΩ/m DC 250V
Dielectric Strength		AC 250V/m 50Hz
Operation Temperature		-30℃ to + 85℃
Operation Humidity		25-85% RH
Solder Ability		260±5℃ for 3 seconds

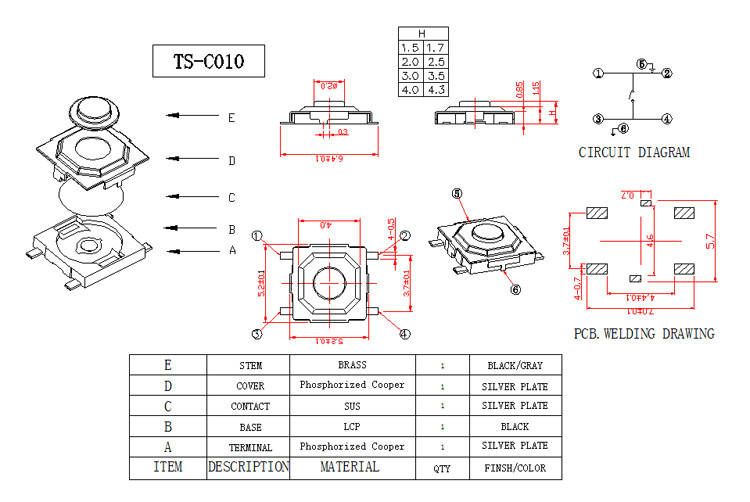

Drawing.

Brass Button Low Profile Momentary Switch , 12v Push Button Switch PA66 Material
