Side Press Momentary Silent Tactile Switch , 4 Pin Surface Mount Push Button

Brand Name : BZCN

Model Number : TS-F002

Certification : SGS

Place of Origin : China

MOQ : 1000 pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 10000000 pcs per week

Delivery Time : 5 days

Packaging Details : 1000 pcs per bag

Press : Vertical

Operation : SPST

Rating : 50mA

Voltage : 12V

Terminal : SMD / DIP

Pin No. : 4 pins

Contact Now

Surface mount terminal 4 pin push button Side press tactile switch with black button

The sample switch is installed such that the
direction of switch operation is vertical and
upon depressing the stem in its center to the
whole travel distance, the force of the stem to
return to its free position shall be measured.

Feature.

Reflow solderable.

With earth anti ESD ground terminal.

Packing in tape reel available.

Spec.

Model No.		TS-F002
Terminal Type		SMD
Switch Rating		50mA DC 12V
Operation Travel		0.2±0.1mm
Operation Tpye		Momentary
Operation Force		160/180/250 gf
Operation Life		300,000 Cycles
Contact Resistance		≤100mΩ max
Insulation Resistance		≥100MΩ/m DC 250V
Dielectric Strength		AC 250V/m 50Hz
Operation Temperature		-30℃ to + 85℃
Operation Humidity		25-85% RH
Solder Ability		260±5℃ for 3 seconds

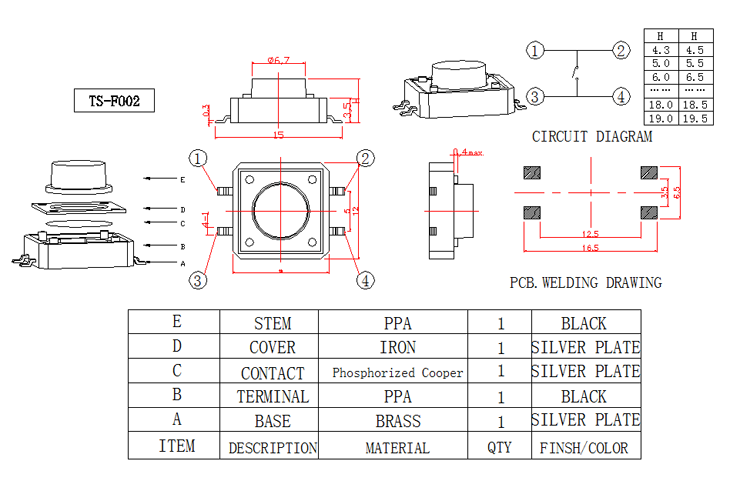

Drawing.

Side Press Momentary Silent Tactile Switch , 4 Pin Surface Mount Push Button
