Snap In Type Micro Push Button Switch Momentary Operation 50mA Rating

Name: Snap In Type Micro Push Button Switch Momentary Operation 50mA Rating
Brand: BZCN
Price: 1 USD

Brand Name : BZCN

Model Number : TS-B011

Certification : SGS

Place of Origin : China

MOQ : 1000 pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 10000000 pcs per week

Delivery Time : 3 days

Packaging Details : 1000 pcs per bag

Push : Horizontal

Color : White

Rating : 50mA

Voltage : 12V

Type : Snap in

Operation : Momentary

Contact Now

Miro momentary tact switch through hole terminal 2 pin white button DIP on PCB

Preheating to 100°C for 45 sec. max. Keep flux flush with top surface of PCB; do not apply to component side of PCB and area where terminals are located. Soldering to 255°C for 5 sec. max. Clean by brushing on solder surface. Do not clean switch with solvents.

Features.

Suitable for high density mounting.

Reflow solderable.

Horizontal type capable of operating in horizontal to PCB.

Can be packed on Tape Reel.

Ultra thin low profile

Spec.

Model No.		TS-B011
Terminal Type		DIP
Switch Rating		50mA DC 12V
Operation Travel		0.2±0.1mm
Operation Tpye		Momentary
Operation Force		160/180/250 gf
Operation Life		300,000 Cycles
Contact Resistance		≤100mΩ max
Insulation Resistance		≥100MΩ/m DC 250V
Dielectric Strength		AC 250V/m 50Hz
Operation Temperature		-30℃ to + 85℃
Operation Humidity		25-85% RH
Solder Ability		260±5℃ for 3 seconds

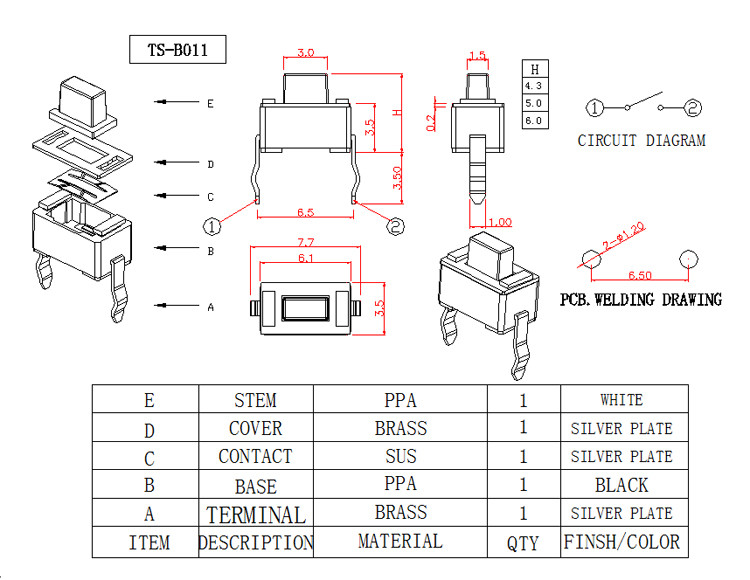

Drawing.

Snap In Type Micro Push Button Switch Momentary Operation 50mA Rating
