Side Press Silent Tactile Switch / Surface Mount Switch With Black Button

Brand Name : BZCN

Model Number : TS-A020

Certification : SGS

Place of Origin : China

MOQ : 1000 pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 10000000 pcs per week

Delivery Time : 5 days

Packaging Details : 1000 pcs per bag

Press : right angle

Operation : Momentary

Rating : 50mA

Voltage : 12V

Terminal : SMD Surface mount

Pin No. : 5 pins

Contact Now

surface mount silent push button Side press tactile switch momentary with black button

Placing the switch such that the direction of
switch operation is vertical, and then the
maximum force to withstand a pull applied
opposite to the direction of stem operation
shall be measured.

Spec.

Model No.		TS-A020
Terminal Type		SMD
Switch Rating		50mA DC 12V
Operation Travel		0.2±0.1mm
Operation Tpye		Momentary
Operation Force		160/180/250 gf
Operation Life		300,000 Cycles
Contact Resistance		≤100mΩ max
Insulation Resistance		≥100MΩ/m DC 250V
Dielectric Strength		AC 250V/m 50Hz
Operation Temperature		-30℃ to + 85℃
Operation Humidity		25-85% RH
Solder Ability		260±5℃ for 3 seconds

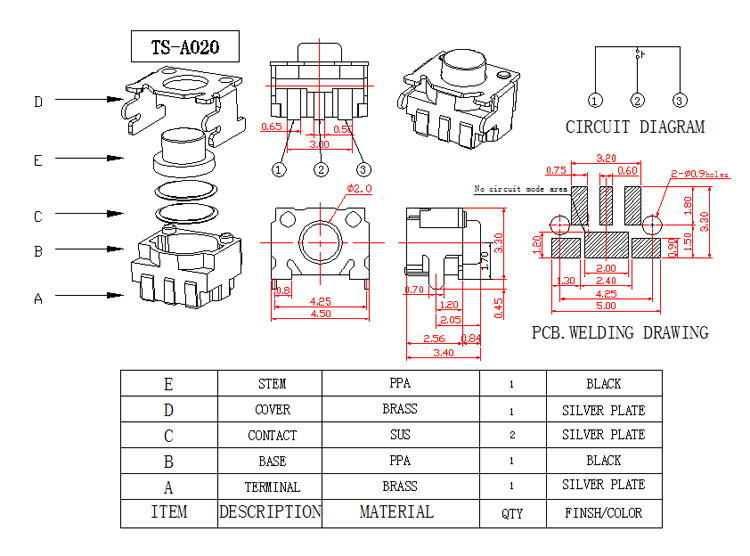

Drawing.

Side Press Silent Tactile Switch / Surface Mount Switch With Black Button
